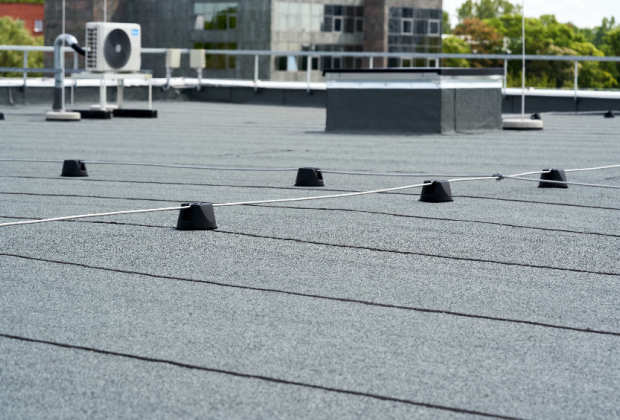

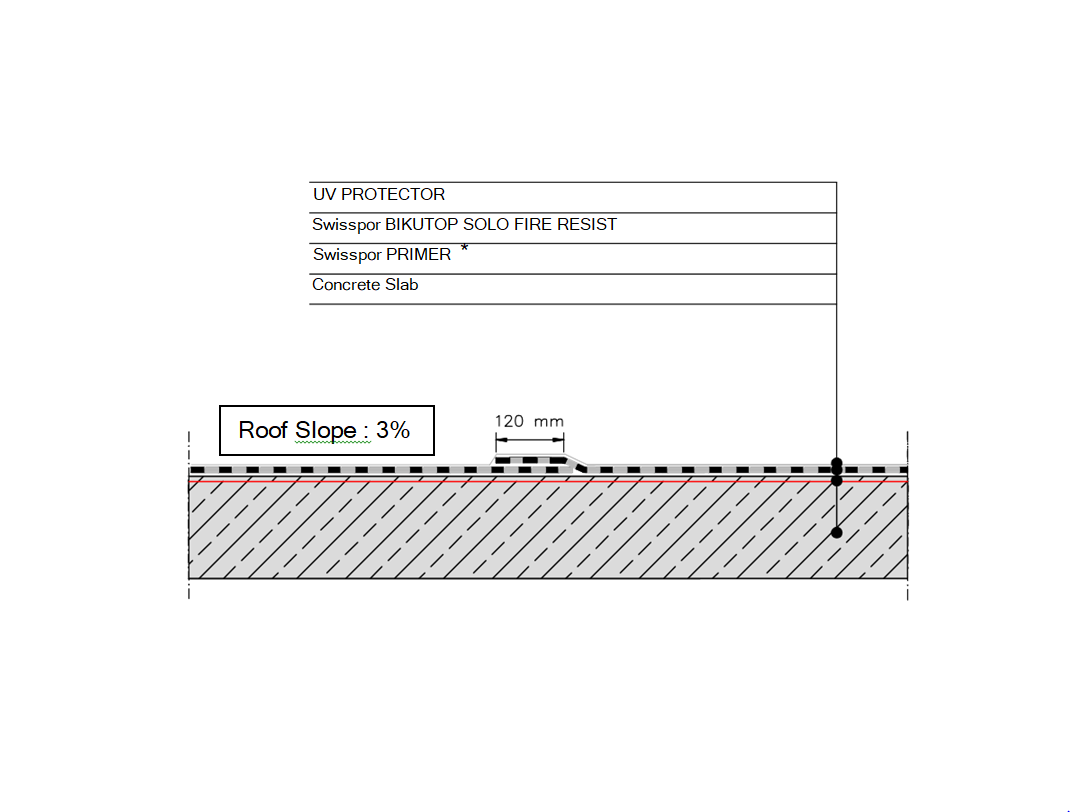

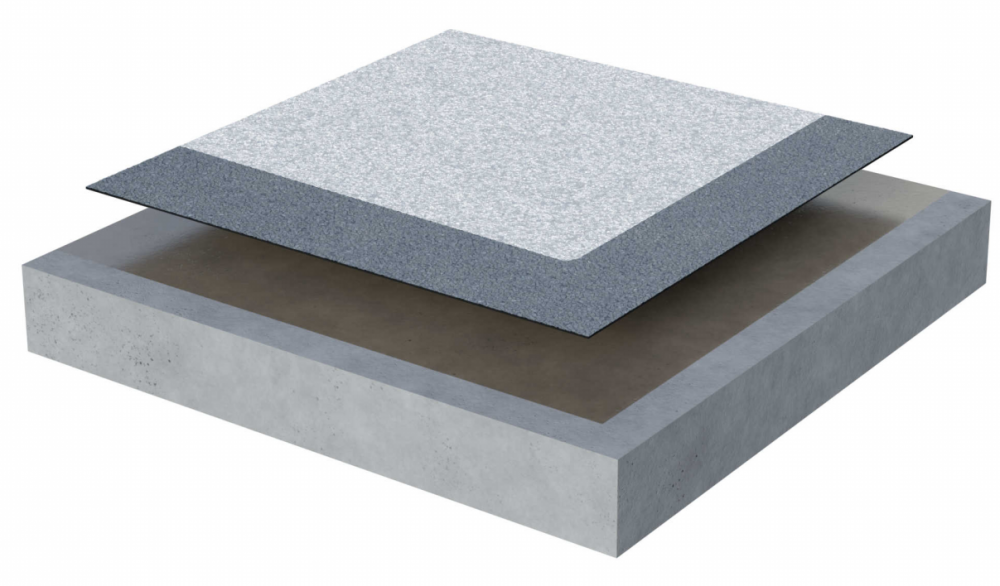

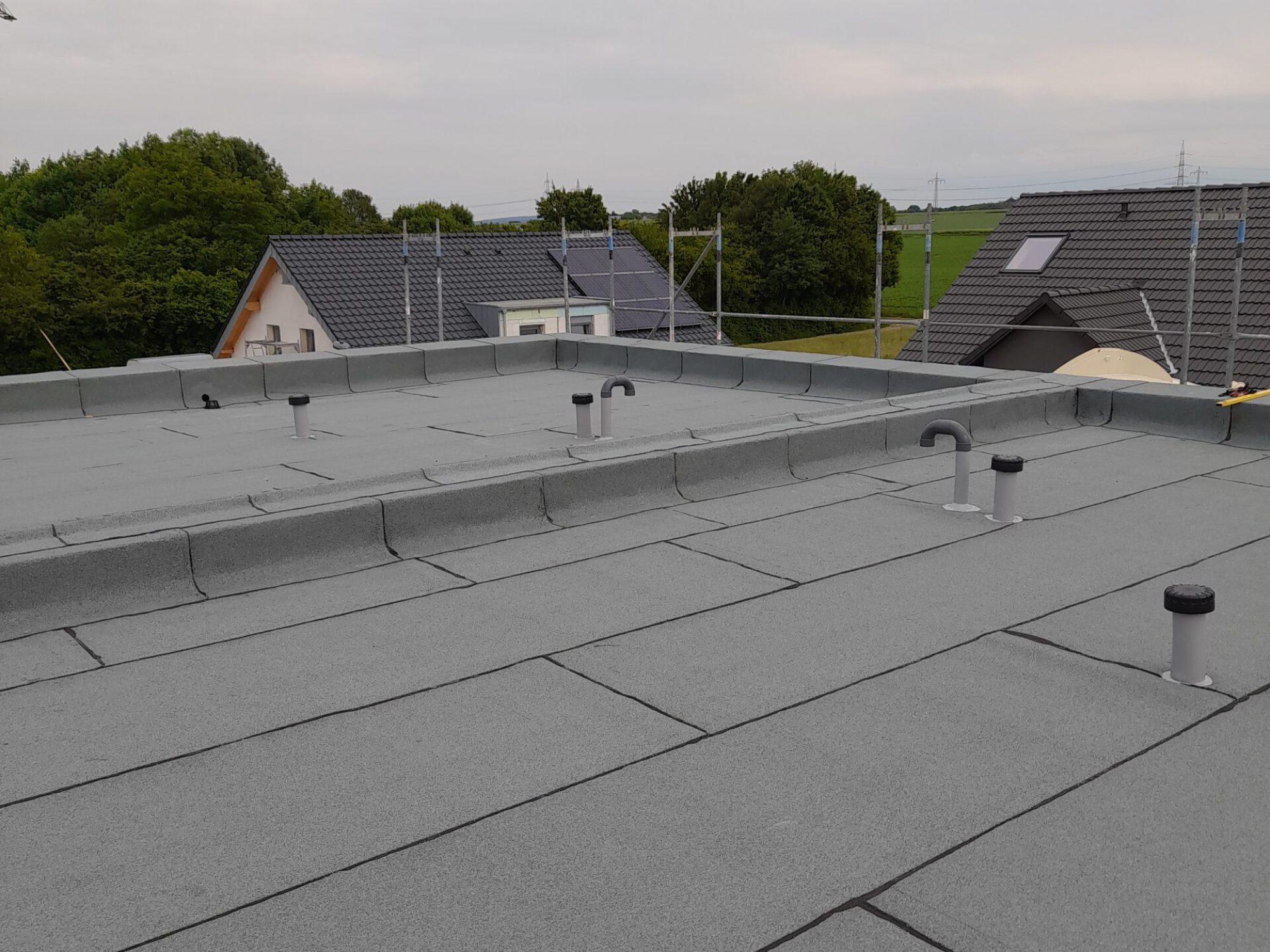

1. Flat Roof without insulation
Description
The Swisspor Bikutop single-layer system on a concrete surface is a high-performance, torch-applied waterproofing solution designed for flat or low-slope roofs without integrated thermal insulation. It relies on a single, heavy-duty layer of SBS-modified bitumen membrane directly bonded to a primed concrete deck to achieve long-term durability and waterproofing in one application.
System Components

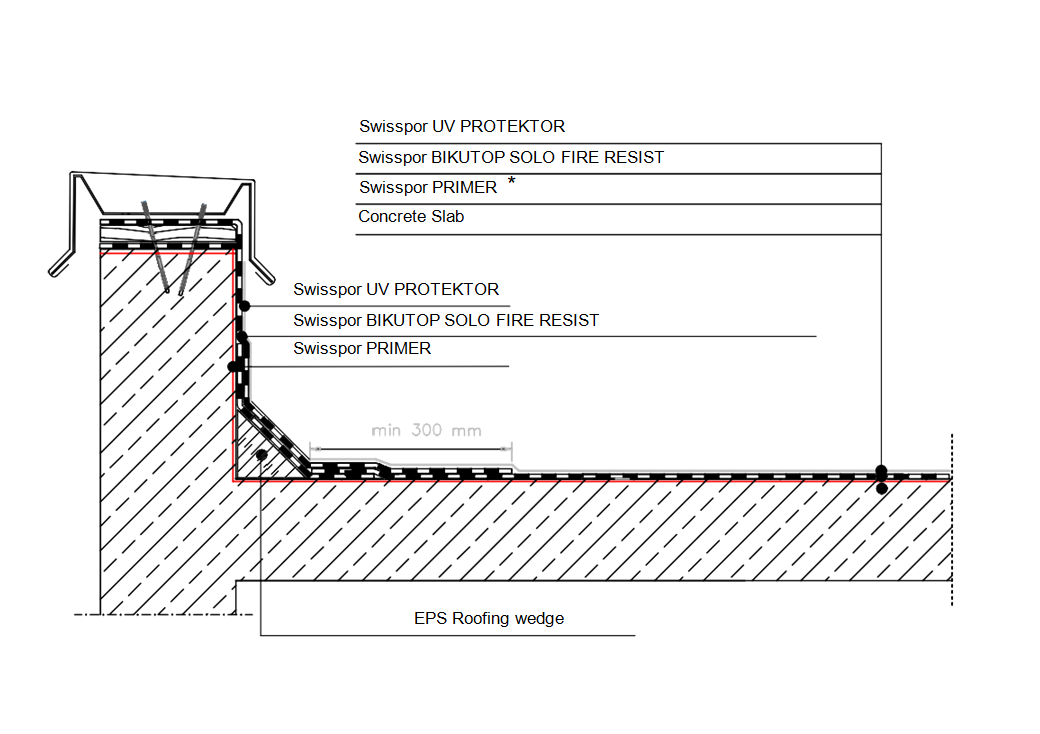

Variant A :
- Swisspor Primer
- Swisspor Bikutop Fire Resist
- Swisspor UV Protector
Varian B :
- Swisspor Primer
- Swisspor Bikutop 53
- Swisspor UV Protector
Warranty
- Variant A qualifies the roofing project for a premium 21-Year Extended System Warranty from Swisspor. This comprehensive warranty ensures long-term waterproofing integrity and material performance, provided the roof is constructed as a complete, unified Swisspor system.
- Variant B qualifies for a premium 18-Year System Warranty from Swisspor.

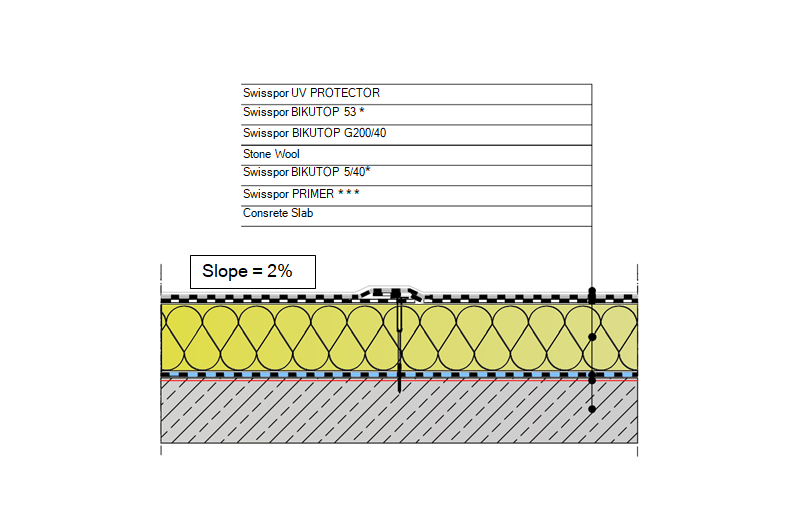

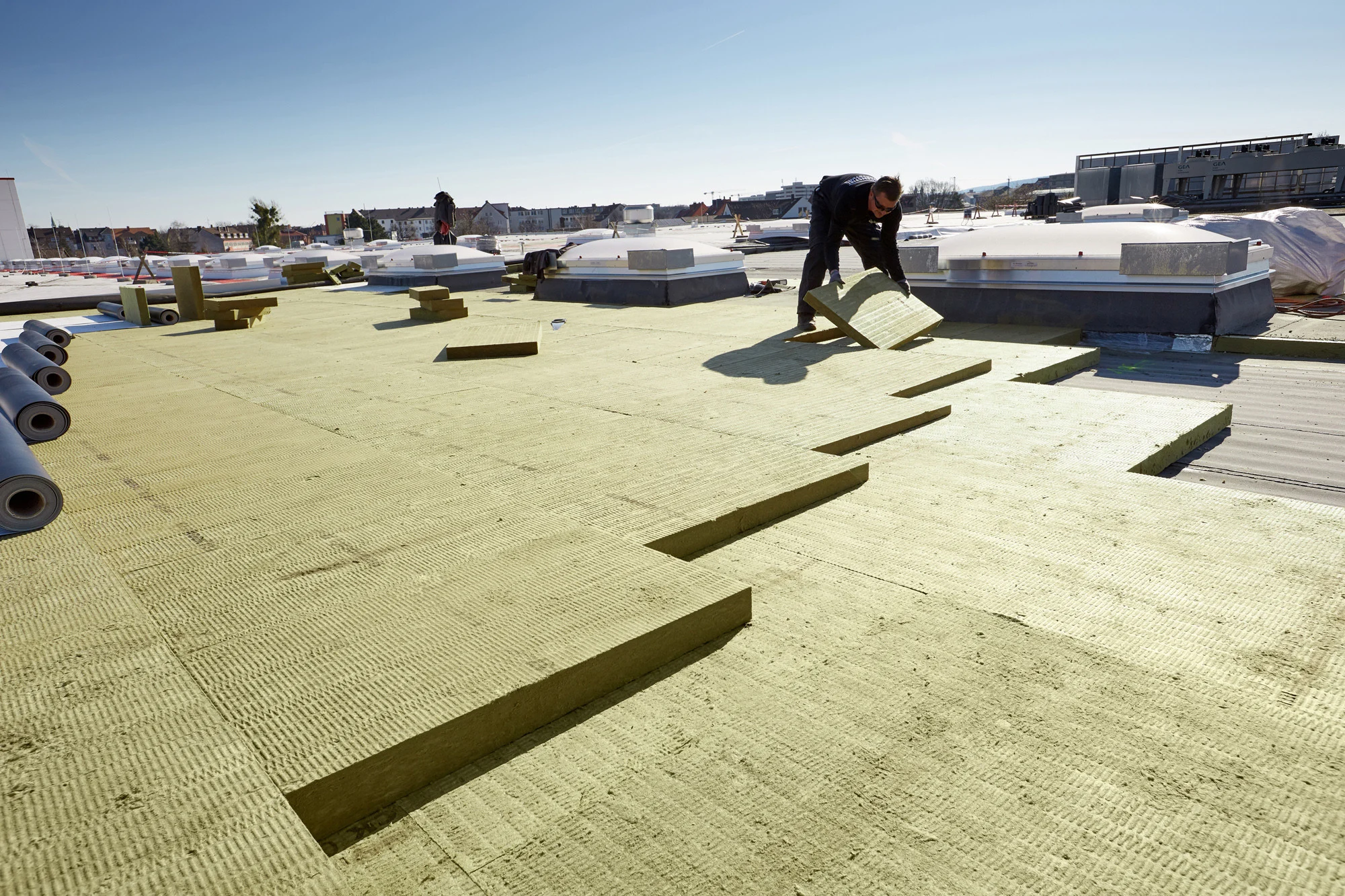

2. Flat Roof with thermal insulation - Stone Wool
Description
The Swisspor Bikutop single-layer system on a concrete surface is a high-performance, torch-applied waterproofing solution designed for flat or low-slope roofs without integrated thermal insulation. It relies on a single, heavy-duty layer of SBS-modified bitumen membrane directly bonded to a primed concrete deck to achieve long-term durability and waterproofing in one application.

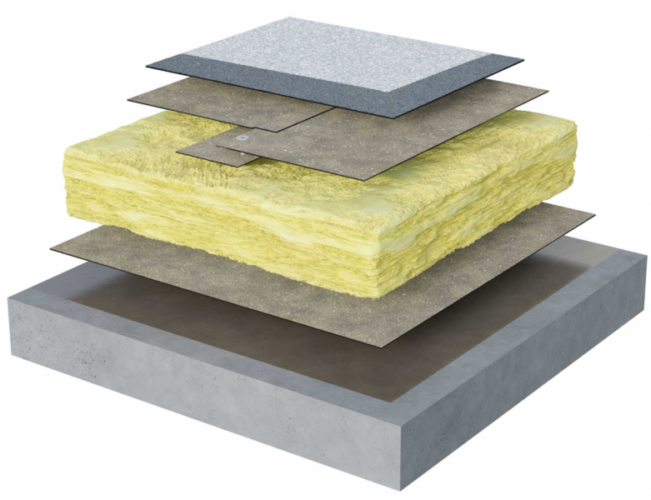

System Components
- Swisspor Primer
- Swisspor Bikutop 5/40
- Stone Wool
- Swisspor Bikutop G200/40
- Swisspor Bikutop 53
- Swisspor UV Protector
Warranty
- This system qualifies the roofing project for a premium 21-Year Extended System Warranty from Swisspor. This comprehensive warranty ensures long-term waterproofing integrity and material performance, provided the roof is constructed as a complete, unified Swisspor system.

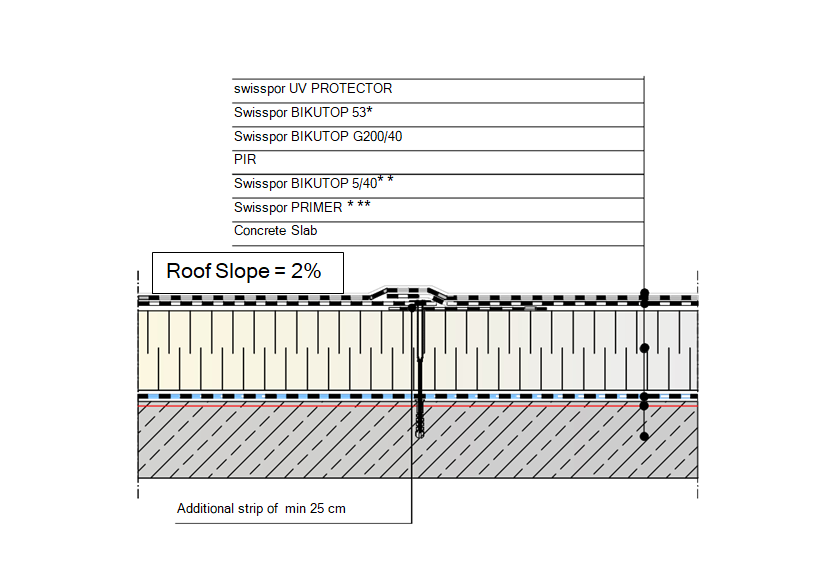

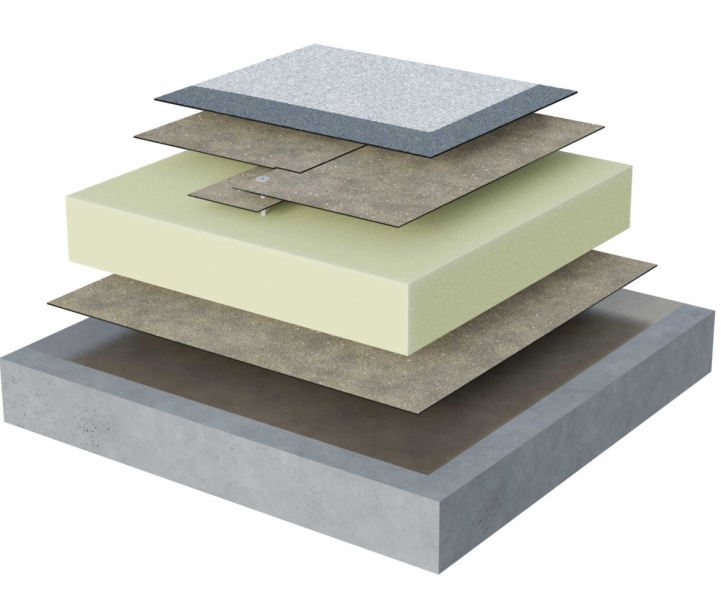

3. Flat Roof with thermal insulation - PIR
Description
The Swisspor Bikutop System with PIR Insulation is a premium, high-performance flat roof solution that achieves an exceptional, market-leading thermal conductivity rating of λ 0.022 W/m·K. This elite thermal efficiency is driven by swissporPIR Alu rigid boards, which feature an ultra-dense closed-cell core factory-laminated on both sides with diffusion-tight aluminum foil to permanently lock in energy performance and enable ultra-thin roof profiles. To guarantee lifetime moisture protection, the system integrates a heavy-duty Swisspor Bikutop Vapor Barrier base membrane featuring a built-in aluminum layer that blocks internal structural vapor, ensuring the entire assembly delivers absolute water tightness and unmatched structural durability for modern residential, commercial, and industrial flat roofs
System Components
- Swisspor Primer
- Swisspor Bikutop 5/40
- PIR
- Swisspor Bikutop G200/40
- Swisspor Bikutop 53
- Swisspor UV Protector
Warranty
- This system qualifies the roofing project for a premium 21-Year Extended System Warranty from Swisspor. This comprehensive warranty ensures long-term waterproofing integrity and material performance, provided the roof is constructed as a complete, unified Swisspor system.

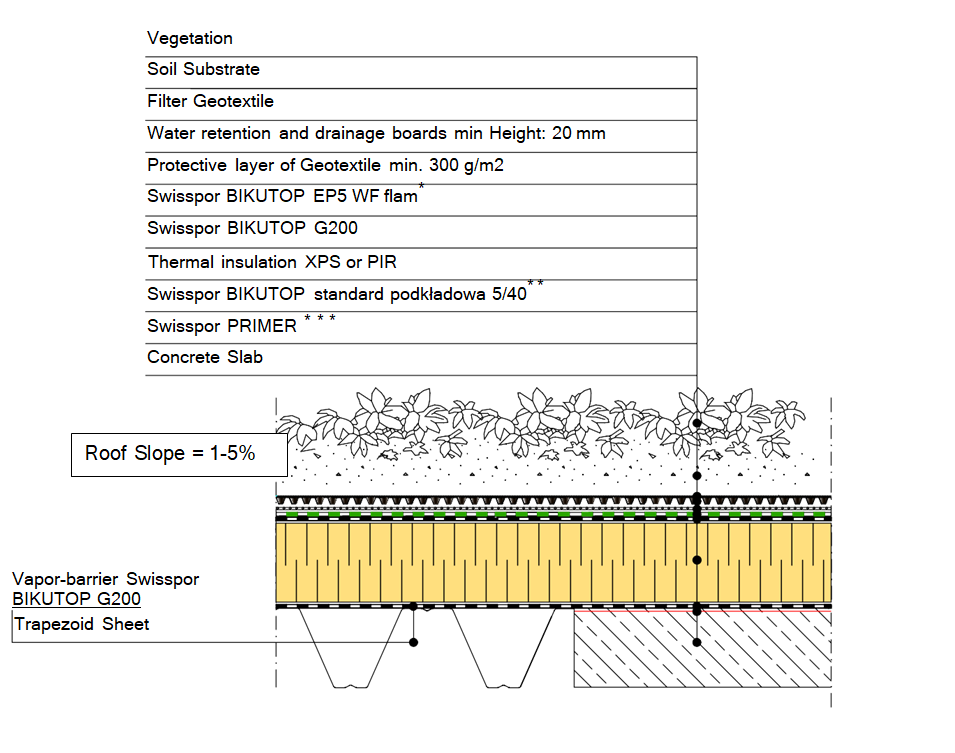

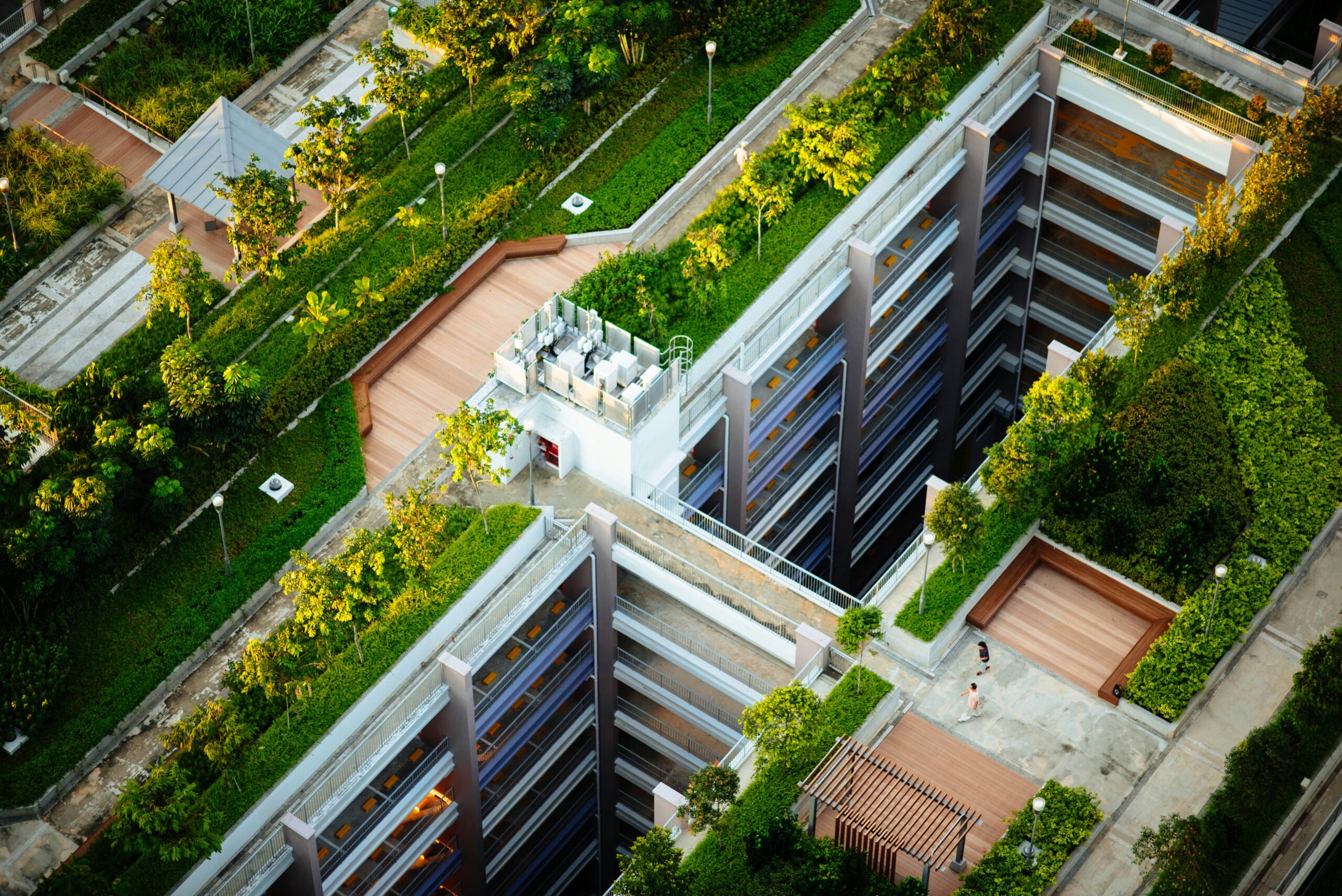

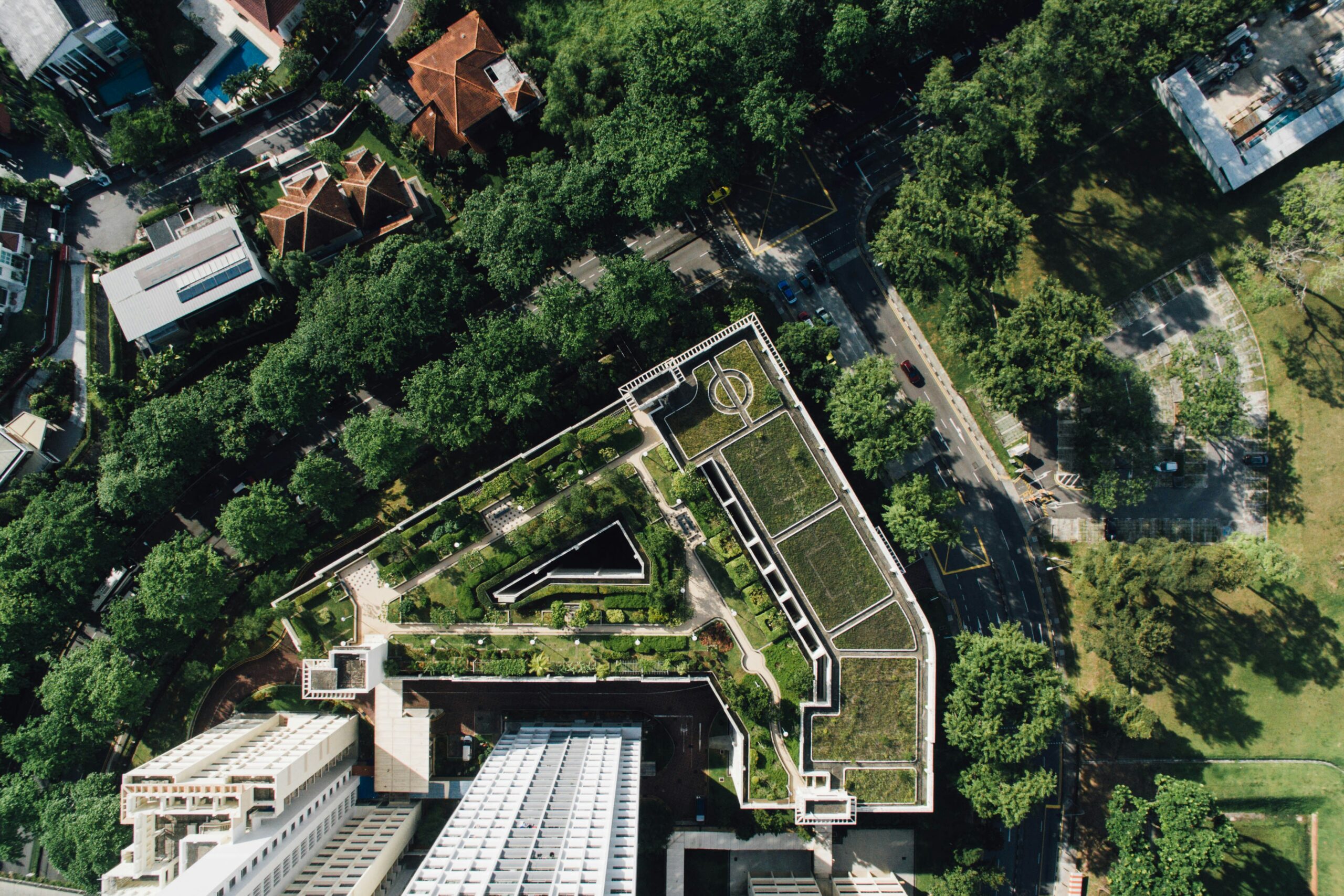

4. Flat Roof with exess vegetation
Description
The Swisspor BIKUTOP System by Swisspor Polska for flat roofs with excess vegetation is a multi-layered, integrated thermal and waterproofing solution. It is designed to combine premium SBS-modified bitumen membranes with high-performance insulation to withstand heavy static structural loads, continuous damp soil conditions, and aggressive biological root penetration

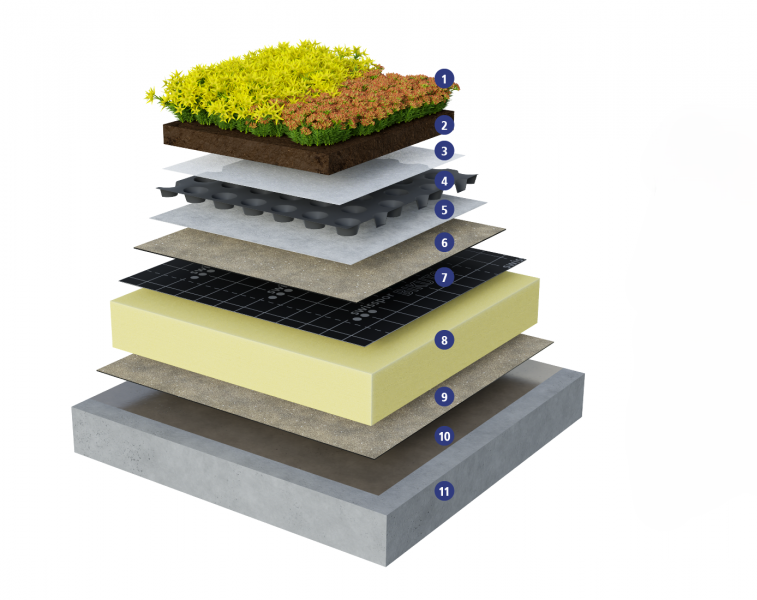

System Components
- Swisspor Primer
- Swisspor Bikutop 5/40
- PIR or XPS
- Swisspor Bikutop G200
- Swisspor Bikutop EP5 Flam
- Layer of Geotextile
- Drainage Boards 20mm
- Filter Geotextile
- Soil Substrate
- Vegetation
Warranty
- This system qualifies the roofing project for a premium 13-Year Extended System Warranty from Swisspor. This comprehensive warranty ensures long-term waterproofing integrity and material performance, provided the roof is constructed as a complete, unified Swisspor system.
